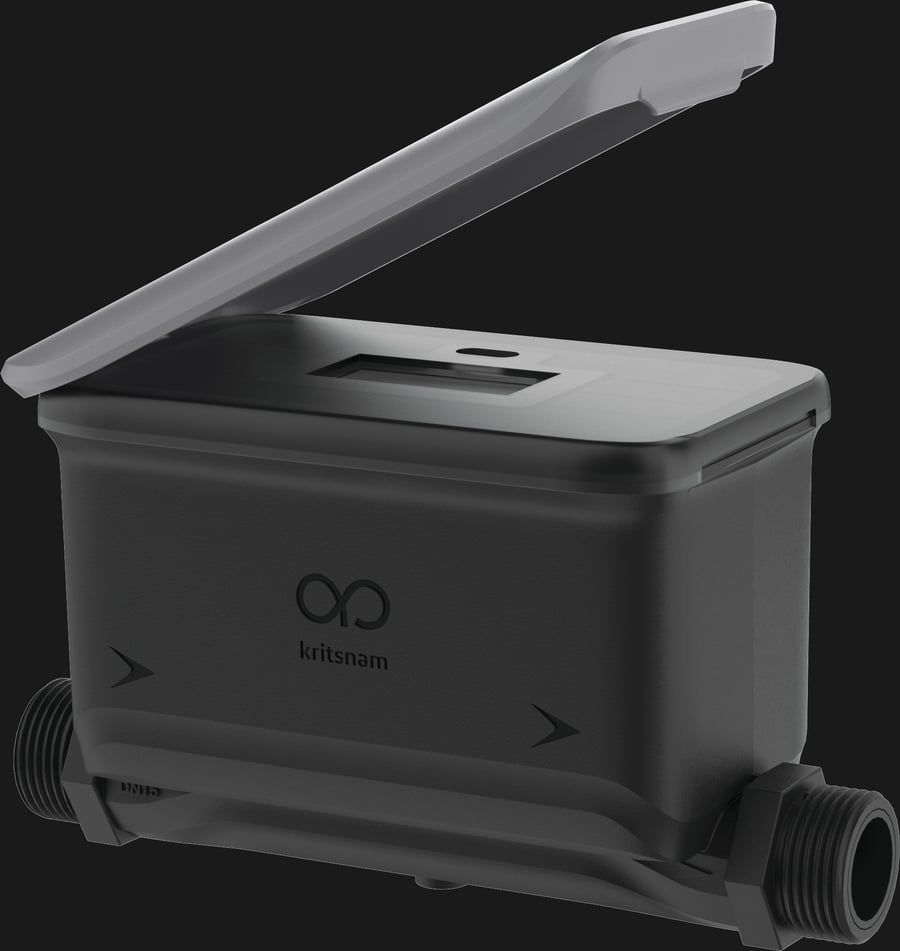

Dhaara Wave DN15
Single home, flat or a separately supplied unit.
- Pipe size
- ½" pipeline
- Nominal diameter
- 15 mm
- Flow range Q1–Q3
- 0.004–1.6 m³/h
- Typical use
- Individual flat or low-flow line
₹4,999
incl. GST
Digital ultrasonic water meter · Made in Hyderabad
₹4,999. No subscription. One price for three sizes.
The mechanical meter, replaced. Ultrasound measures the water, a digital display shows the total, and a sealed battery powers it for years. No SIM, no app, no recharge. Same price for 15, 25 and 50 mm.
- Incl. GST
- Ships across India in 1–2 weeks
- 1-year warranty
- Fittings and plumbing charged separately
Wave is read at the meter. If you want daily water receipts on your phone, you want Dhaara Pulse

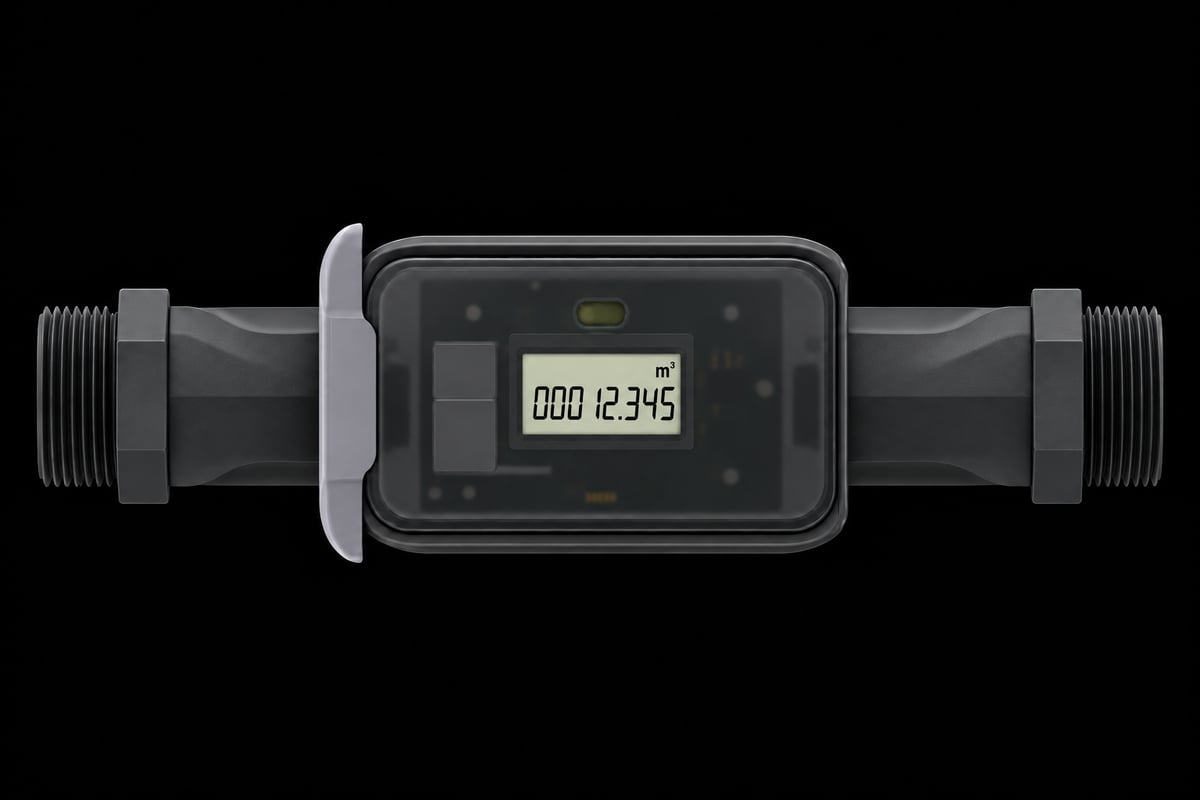

Total volumem³
00012.345
Total water used since installation, in m³. This reading = 12,345 litres.
- Standards
- ISO 4064 certified · OIML R49 model approval
- Made in India
- Legal Metrology approved facility, Hyderabad
- Designed by
- IIT Kanpur and IIT Kharagpur alumni
- Supported by
- Department of Science and Technology, GoI
What it costs, all in
One number. Count your inlets and multiply.
Wave has one price for all three sizes and nothing recurring. Count your inlets, multiply by ₹4,999, and that is the meter bill.
- ₹0monthly or yearly fee
- ₹0SIM, data or app
- ₹0annual plan or recharge
- ₹0extra for 25 or 50 mm
What is not included: thread adapters, reducer bushes, unions, NRV and your plumber's labour. Typical fitting materials run a few hundred rupees per meter; your plumber quotes labour locally.
Your meter bill
- Meters needed
- 20
- Per flat
- ₹4,999
- Recurring charges
- ₹0
- Total, one time
- ₹99,980
Meter price only, incl. GST. Fittings and labour extra. Orders above 20 meters: ask for project pricing on WhatsApp.
Get this quote on WhatsAppWill it fit my plumbing?
One meter per inlet. Here is what that means in your building.
Wave measures the water that passes through it. Check both: the right meter size and the number of supply inlets. Three common layouts:
Who installs it
A qualified plumber you arrange, following our installation manual and guidance videos. Standard threaded adapters on CPVC or UPVC, about 20–30 minutes per meter, no wiring. We send the manual and videos on WhatsApp.
Site visits
We do not survey or visit sites. Send a pipe photo on WhatsApp and we help you check the size; your plumber handles the fitting.
Where we are
Designed and built in Hyderabad. Shipped across India in 1–2 weeks. Support on WhatsApp, Mon to Sat, 9 to 6.
Mechanical vs ultrasonic
Your mechanical meter has moving parts. Water has air.
Tanker fills and intermittent supply push air through the line. An impeller spins on air and registers it as water; it misses slow drips, and its gears drift as they wear. Wave measures with ultrasound. Nothing spins.
What changes for you
Mechanical meter
Dhaara Wave
Air in the pipe (tanker, intermittent supply)
Air can turn the impeller and register as water
No impeller for air to turn
Slow flows and drips
Often missed, under-reads
Sensitive low-flow measurement
Accuracy over the years
Drifts as gears wear
No impeller or gear wear
Maintenance
Strainer cleaning, repairs, replacement
No moving measuring parts to service
Reading
Dials and rolling digits
Clear digital LCD
Price by size
Rises steeply with pipe size
₹4,999 for 15, 25 and 50 mm
Warranty and support
Varies by brand
12 months from delivery (13 from invoice, if earlier), WhatsApp support
Ultrasonic · Digital · Standalone
Modern measurement. No moving measuring parts.

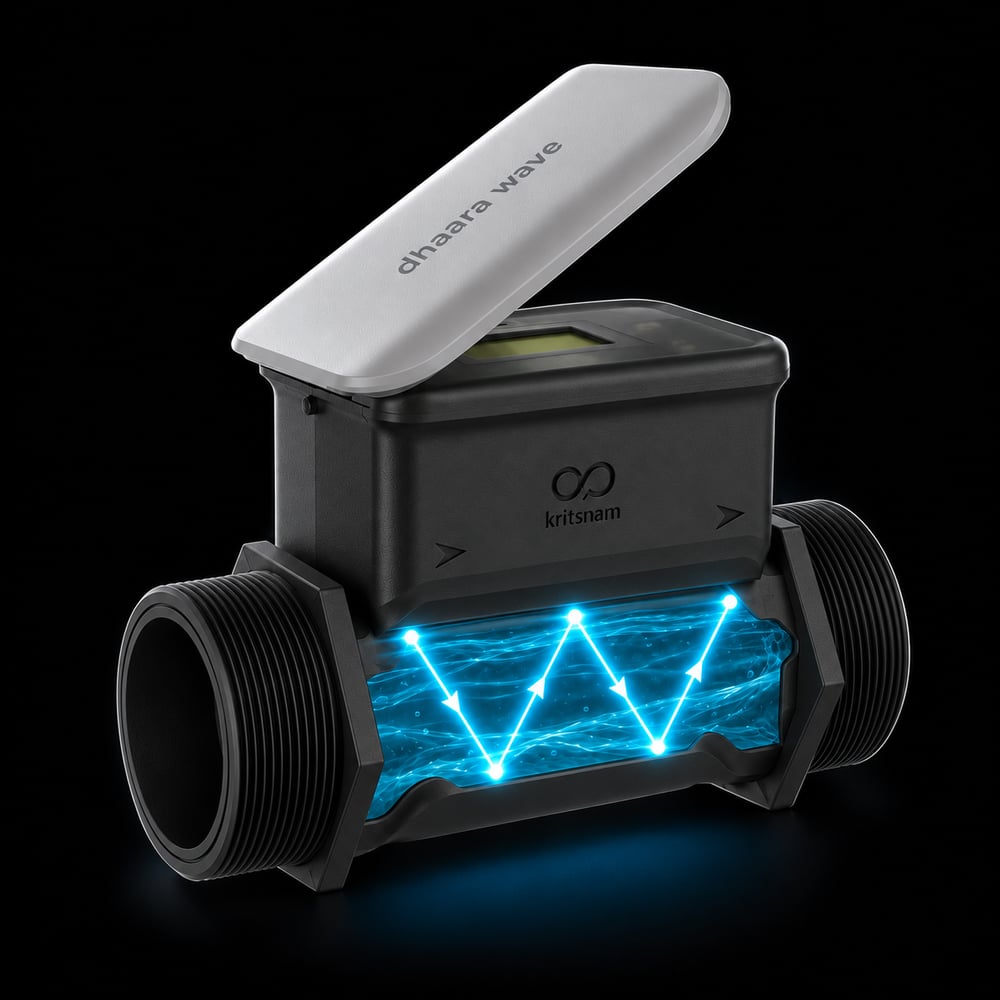

How ultrasonic measurement works
Sound waves measure the flow. Nothing spins.
Two transducers in the meter body send an ultrasonic pulse along the pipe, one with the flow, one against it.
The pulse travelling with the water arrives slightly sooner. The time difference tells the meter how fast the water is moving.
Flow is totalled over time and shown on the LCD as volume in cubic metres.
Reading the meter
Measure usage between any two readings.
Record the meter reading at the beginning and end of a period. The difference shows the volume of water that passed through the meter during that period. One cubic metre is 1,000 litres.
ExampleVolume
Beginning of period125.000 m³
End of period137.500 m³
Consumption during period12.500 m³ · 12,500 L
A leak shows up the same way: a reading that moved when nobody used water. You see it at your next reading. Pulse sends a daily water receipt to your phone, so you can review use every morning instead.
Battery · Warranty · Lifespan
“What happens when the battery dies?” Here is the straight answer.
The battery is sealed inside the meter and is not user-replaceable. It is expected to last 8 years under normal conditions: an expectation, not a warranty. At end of life the display stops, and the battery is replaced at our factory for a charge; you do not have to buy a new meter. Note the reading before the meter is removed.
- Battery
- Sealed, expected 8 years (not a warranty)
- Factory warranty
- 12 months from delivery, or 13 from invoice if earlier; repair or replacement on defect
- Support
- WhatsApp, Mon–Sat
- Wear parts
- None in the measuring path
- At end of life
- Paid battery replacement at the factory
Villas · PGs & rentals · RWAs · Shops · Institutions
Built for places where someone walks up and reads the meter.
Not for: tank level, pump control or water quality. Wave is a flow meter. It tells you how much water passed a point in the pipe, nothing else.

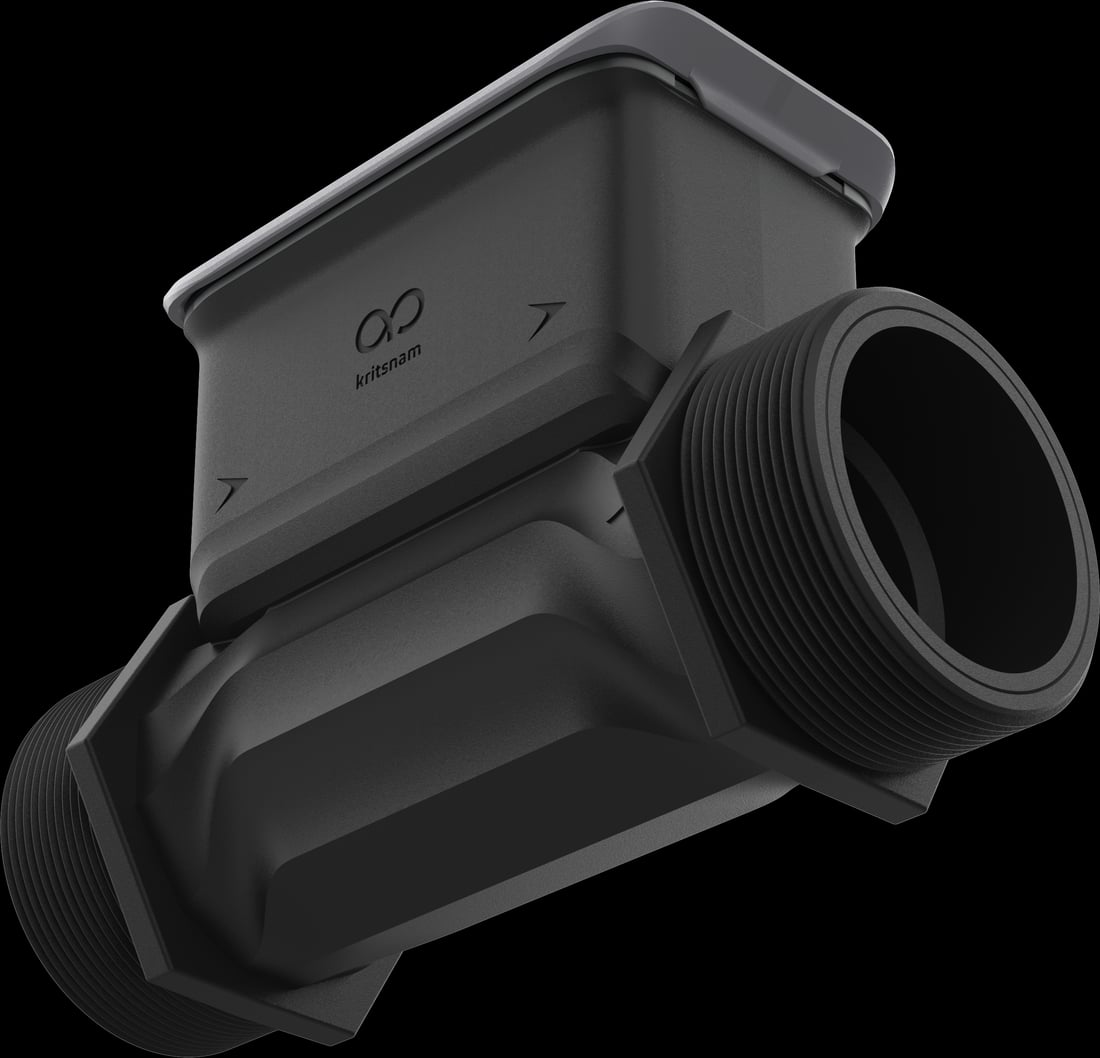

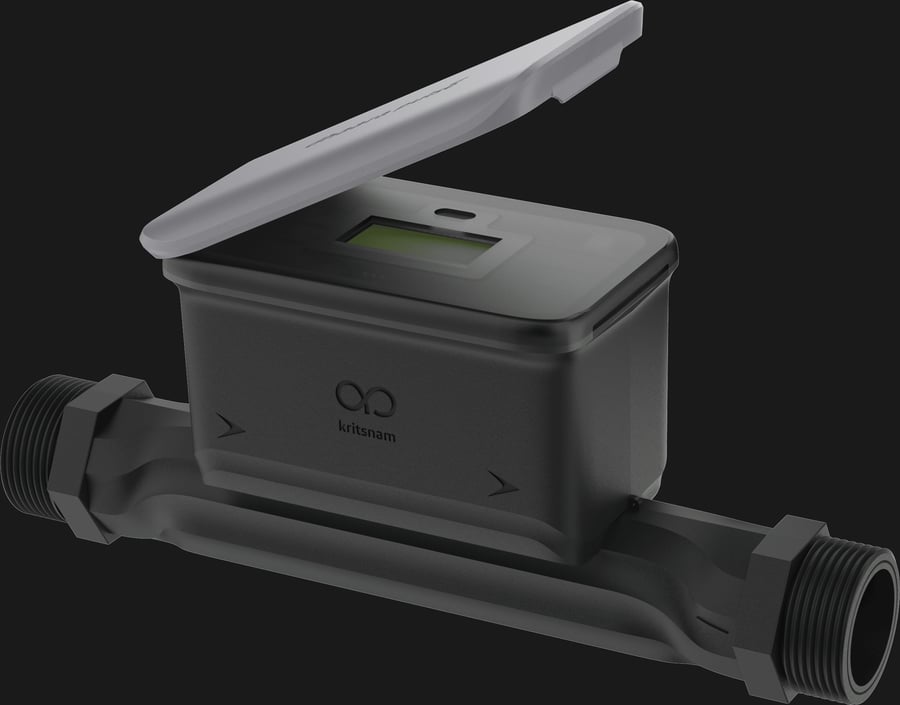

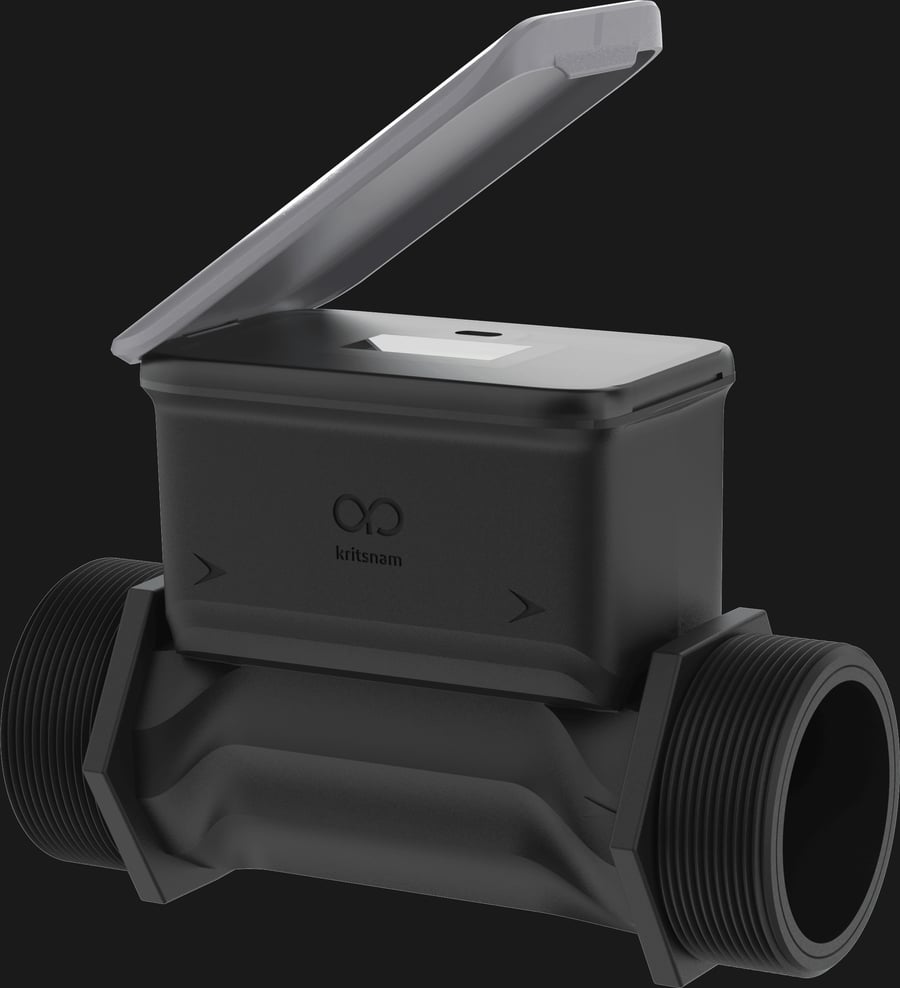

DN15 · DN25 · DN50
Buy one meter or plan your building’s metering.
Single units available. For multiple flats or supply lines, we’ll help confirm the meter count and installation requirements. Not sure of the size? Send a pipe photo.
- Price inclusive of GST. Installation, fittings and plumbing materials are charged separately.
- Delivery across India; shipping charges and dispatch time shown at checkout.
- Warranty: 12 months from delivery, or 13 from invoice if earlier. WhatsApp support. Warranty · Returns
- 20 meters or more? Ask for project pricing
Technical specifications
The numbers
Measurement
- Principle
- Ultrasonic
- Moving measuring parts
- None
- Accuracy
- ISO 4064 Class 2, within rated flow range Q1–Q3
- Reading collection
- Manual, at the meter
Display & power
- Display
- Digital LCD
- Reading
- Total volume (m³)
- Battery
- Sealed, expected 8 years (not a warranty)
- Connectivity
- None. No SIM, Wi-Fi or app
Sizes & installation
- Nominal sizes
- DN15 · DN25 · DN50
- Price
- ₹4,999 incl. GST, all sizes
- Pressure rating
- PN16
- Ingress protection
- IP68
- Orientation
- Horizontal (tilted 30–90°) or vertical-up
- Straight lengths
- 10D upstream · 5D downstream
- Fluid
- Raw water, RO water or treated wastewater (not raw sludge or untreated wastewater)
Standards & support
- Metrology
- ISO 4064 Class 2
- Model approval
- OIML R49
- Manufacturing
- Legal Metrology facility, Hyderabad
- Government tenders
- Certificates supplied on request
- Warranty
- 12 months from delivery, or 13 from invoice if earlier
- Support
Flow rates (m³/h)Q1 minQ2 trans.Q3 perm.Q4 overload
DN15 · 15 mm0.0040.0061.62
DN25 · 25 mm0.0160.0256.37.875
DN50 · 50 mm0.0630.12531.25
Q3/Q1 = R400. Select by flow range as well as pipe diameter.

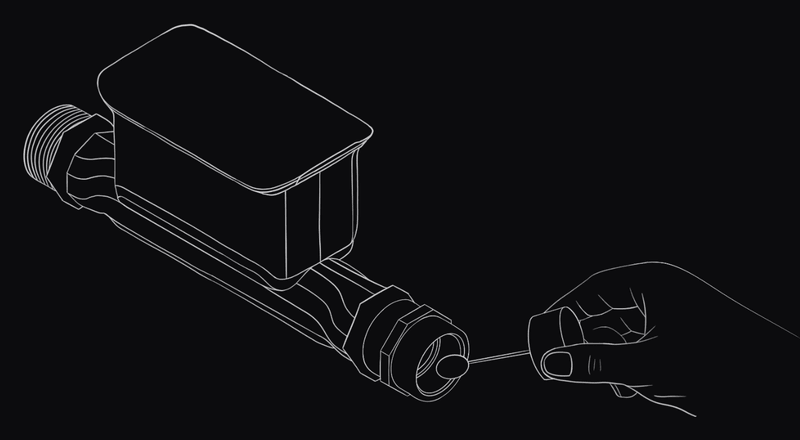

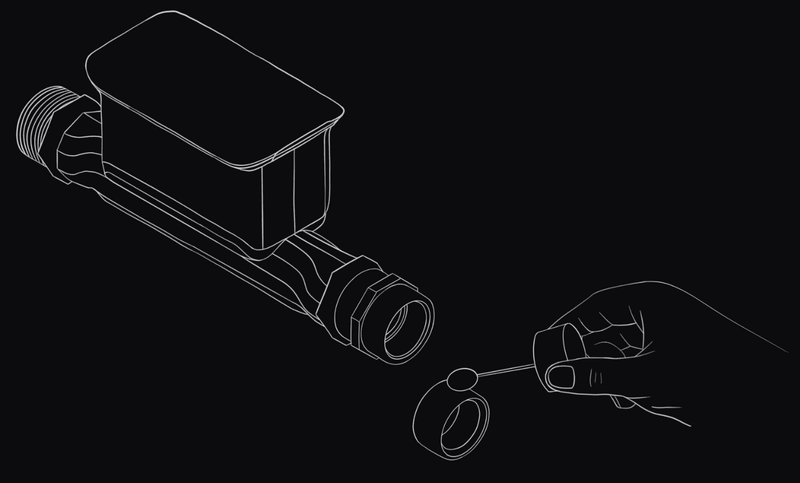

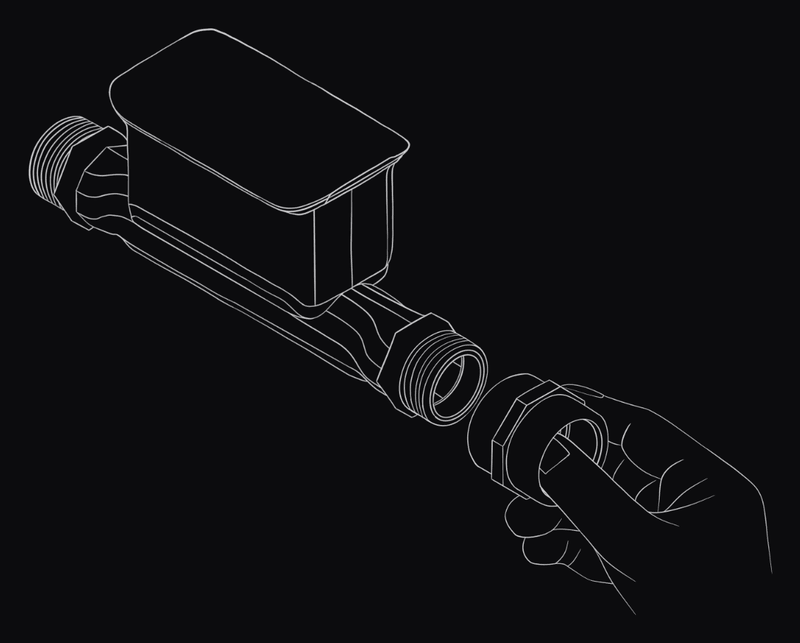

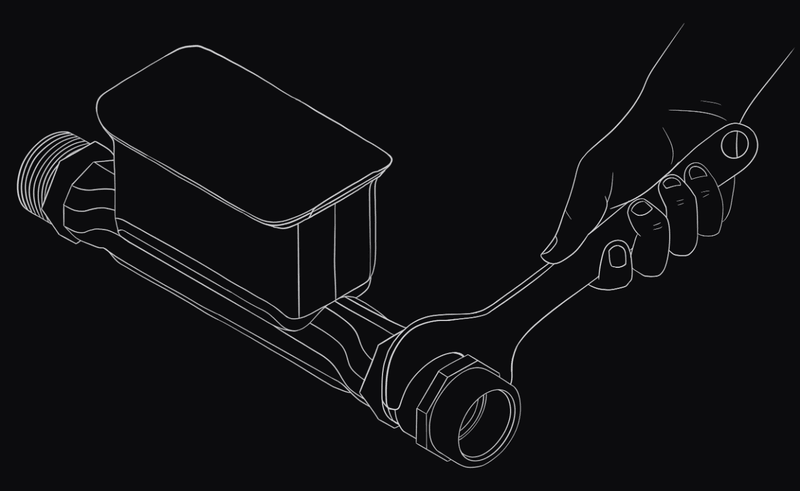

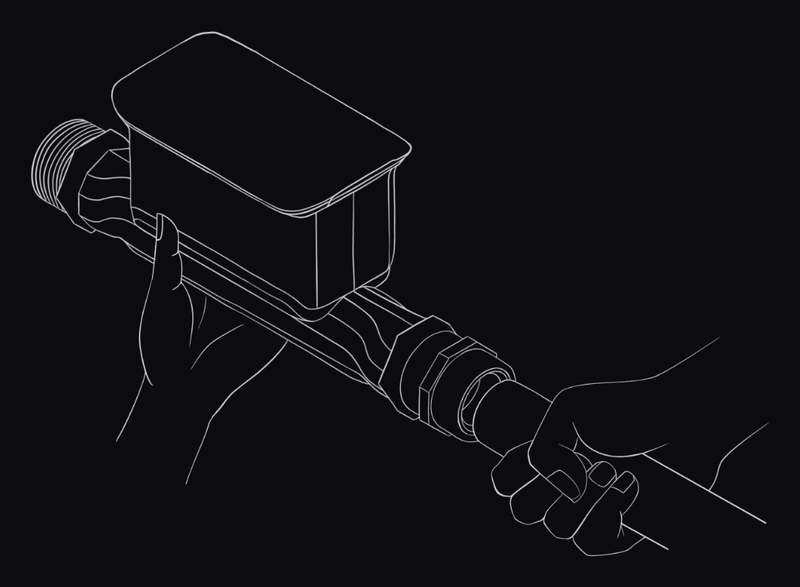

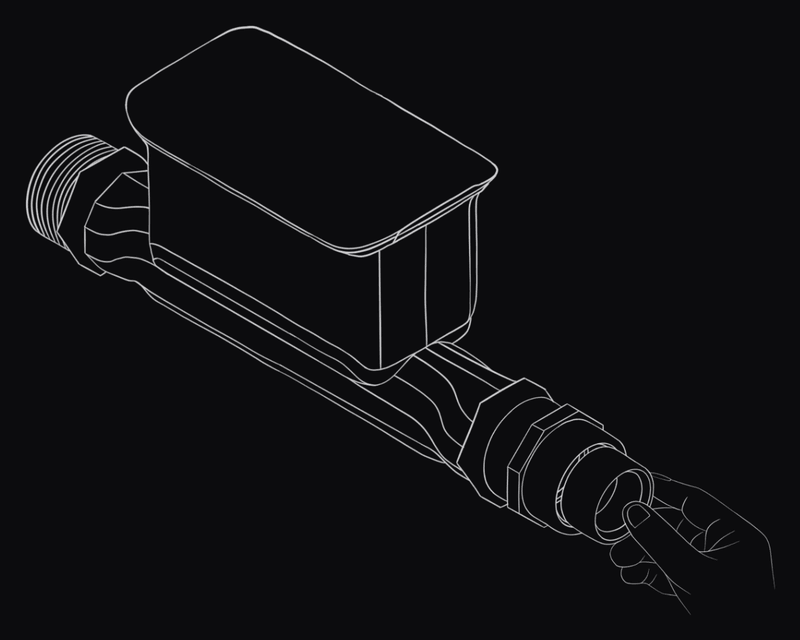

Installation · Same as Dhaara Pulse
Your plumber fits it in about 20–30 minutes.
Dhaara Wave installs inline on a CPVC or UPVC supply line with standard threaded adapters. A plumber should confirm size, flow range and installation conditions before fitting. No power wiring is ever needed.
In the box
- Dhaara Wave meter
- Installation manual
- Factory calibration card (not NABL)
For raw water, RO water or treated wastewater; not for raw sludge or untreated wastewater. Battery is sealed and not user-replaceable. Opening the enclosure voids warranty.
Your plumber brings (not included)
- DN15
- 2× FTA ¾" BSPP · 2× reducer bush ¾"→½" · ½" pipe
- DN25
- 2× FTA 1¼" BSPP · 2× reducer bush 1¼"→1" · 1" pipe
- DN50
- 2× FTA 2½" BSPP · 2× reducer bush 2½"→2" · 2" pipe
- Common
- 2× unions, NRV, air-release valve, PTFE tape, CPVC primer & cement, pipe cutter, spanner
Which one do I need?
Can someone walk up and read it? Wave.Need to know from your phone? Pulse.
Same ultrasonic meter inside. Wave has a display. Pulse adds built-in connectivity and daily water receipts on WhatsApp, with Basic and Pro recharge plans from year two.
What customers ask usDhaara WaveDhaara Pulse
Will I know about a leak immediately?No. You see it at your next readingNo alerts. You review the next morning’s receipt
Do I get readings on my phone?No. Read on the meterDaily water receipts on WhatsApp
Does it show tank level or control the pump?No. Flow meter onlyNo. Flow meter only
Does it need a SIM, Wi-Fi or internet?NoneBuilt-in cellular, nothing from you
Is there anything to pay every year?NothingFrom year two: Basic ₹1,788 or Pro ₹3,588
Monthly receipts and historyYour own readingsOn Pro: monthly receipt per meter and history in Dhaara Live
BMS / SCADA integrationNot applicableAsk the Pulse team
Best fitFlats, tenant lines, sump inlets read on siteRemote access and daily water receipts
Questions customers ask us
Your questions, in your words.
These are the questions we hear most on the phone, answered the way we answer them on the phone. If yours is missing, ask.
In a tower, start with the sources and distribution: one meter on the sump inlet and on each tanker, borewell and tower line, and add flats as the association agrees. Per-flat metering works where each flat has its own inlet: 40 × ₹4,999 = ₹1,99,960, one time, nothing yearly, though in a tower it means more plumbing. Orders of 20 or more get project pricing on WhatsApp.
At your next reading. Wave has no connectivity, so there is no alert. Dhaara Pulse sends a daily water receipt to WhatsApp so you can review use every morning, though it sends no leak alerts either.
Yes, one meter per inlet, ₹9,998 per flat. Add the two readings. If flats share a riser with no per-flat branch, meter the tower or sump inlet instead; we will tell you honestly if per-flat metering needs re-plumbing.
None. No subscription, SIM, app or recharge, for one meter or a hundred. ₹4,999 is the meter price; fittings and plumbing are extra.
No. The battery is sealed and expected to last 8 years under normal conditions, an expectation rather than a warranty. At end of life it is replaced at our factory, for a charge. Defects within the warranty (12 months from delivery, or 13 from invoice if earlier) are repaired or replaced.
No. Wave is a flow meter: it tells you how much water passed through the pipe. It does not measure tank level, control pumps or test water quality.
A qualified plumber you arrange fits it in about 20–30 minutes with standard threaded adapters, following our installation manual and guidance videos; we send both on WhatsApp. We do not visit or survey sites: send a pipe photo and we help you check the size.
There is no demo or trial programme. Single units are a normal purchase, so you can fit one on a flat or the sump line and read it yourself before a larger order. A fitted meter is not automatically returnable; a return request is reviewed case by case.
₹4,999 including GST for 15 mm, 25 mm and 50 mm alike. Fittings, unions and your plumber are extra.
Hyderabad; the meters are built in our own Legal Metrology approved facility. We ship across India in 1–2 weeks and support on WhatsApp, Mon to Sat. Installation is by your local plumber.
Ultrasound measures the water, so nothing spins or wears. A digital display shows the total in m³. You read it, subtract the last reading, and that is the consumption. That is the whole product.
Yes. Message us on WhatsApp and we send the installation manual and guidance videos, no form to fill.
No SIM, no Wi-Fi, no app and no WhatsApp water receipts. Those belong to Pulse. Wave works with nothing but its battery.
Not Wave; it has no output. For integration or custom requirements, speak to the Pulse team.
ISO 4064 Class 2 and OIML R49 model approval, manufactured in a Legal Metrology approved facility. Certificates are supplied on request for tenders and compliance files.
Acceptance depends on the application and the relevant authority's requirements. For internal cost-sharing in a society or between tenants, the readings are what you need.
₹4,999 · Ships across India · 1–2 weeks
Choose your size, or send a pipe photo and we’ll confirm it.
Single units ship across India in 1–2 weeks. For multiple flats or supply lines, WhatsApp +91 92810 66228 and we help confirm the meter count and fittings.
Dhaara Wave is part of the Dhaara water-metering range from Kritsnam Technologies, Hyderabad.
